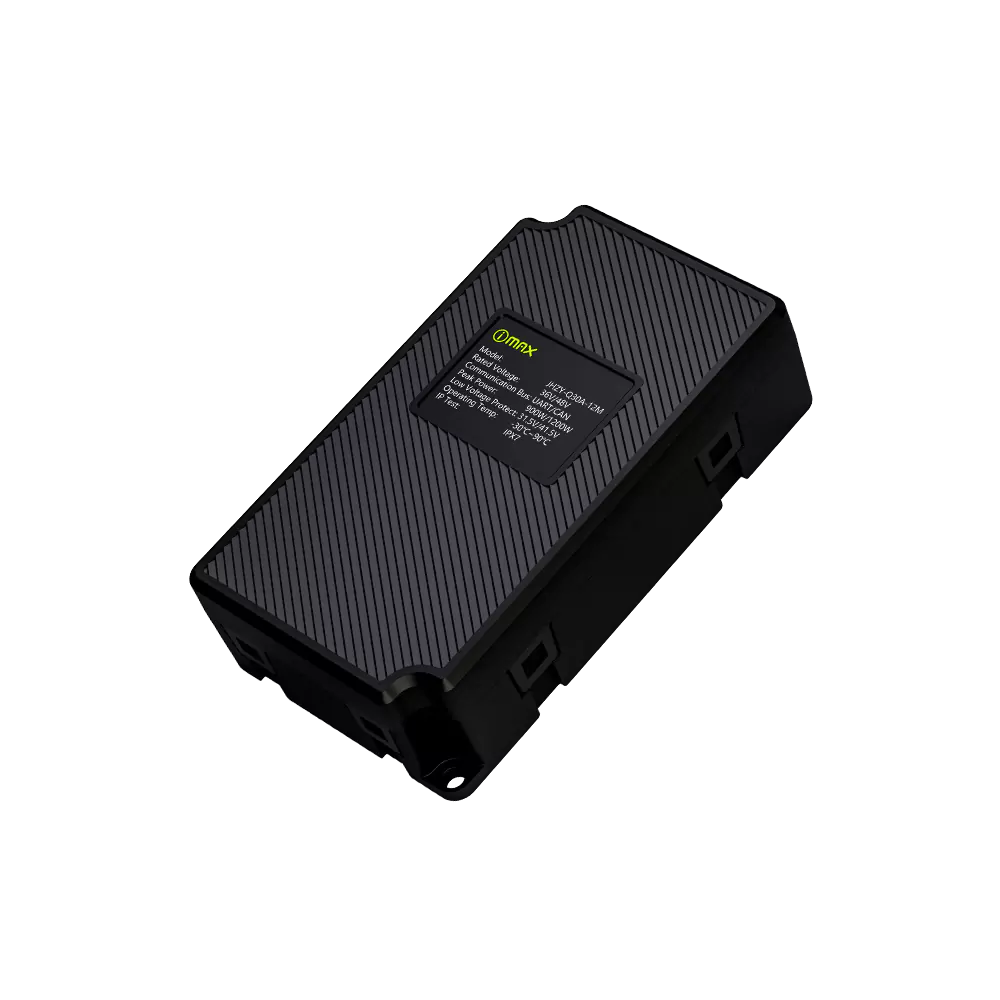

Controller

ZY-Q30A-12M

Specifications
Size 130mm×74mm×35mm
Rated Voltage 36V/48V
Communication Bus UART/CAN
Peak Power 900W/1200W
Low Voltage Protect 31.5V/41.5V
Operating Temp -30℃~90℃
IP Test IP67
Functions Speed/Torque sensor, throttle, head light and tail light, brake light, turn signal, horn, anti-theft system, ambient light.
Certificate CE/EN ISO 13849-1:2015
